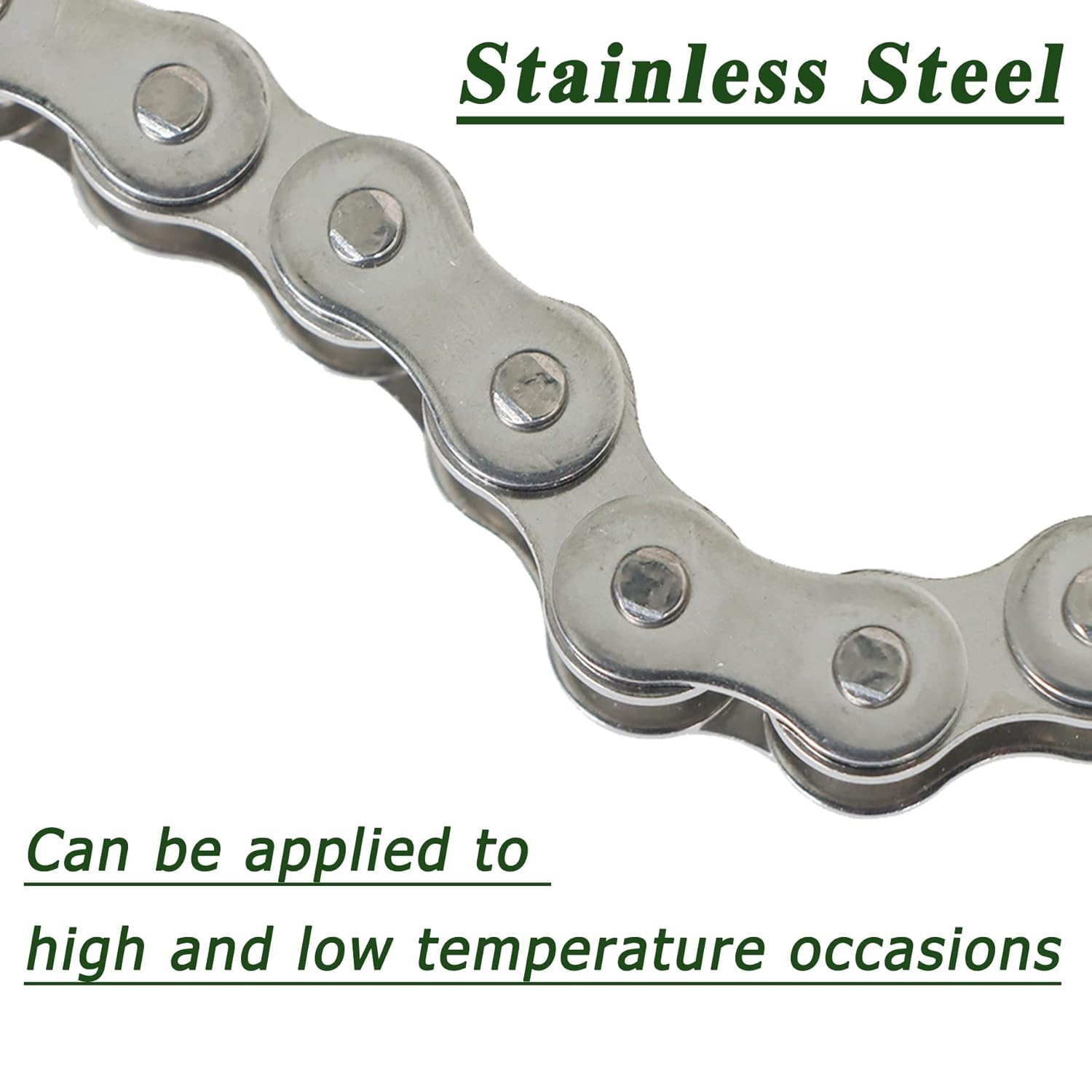

40SS 10 Feet Stainless Steel Roller Chain 240 Links with 1 Connecting Links
Product details
| Management number | 220403633 | Release Date | 2026/05/03 | List Price | US$16.68 | Model Number | 220403633 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

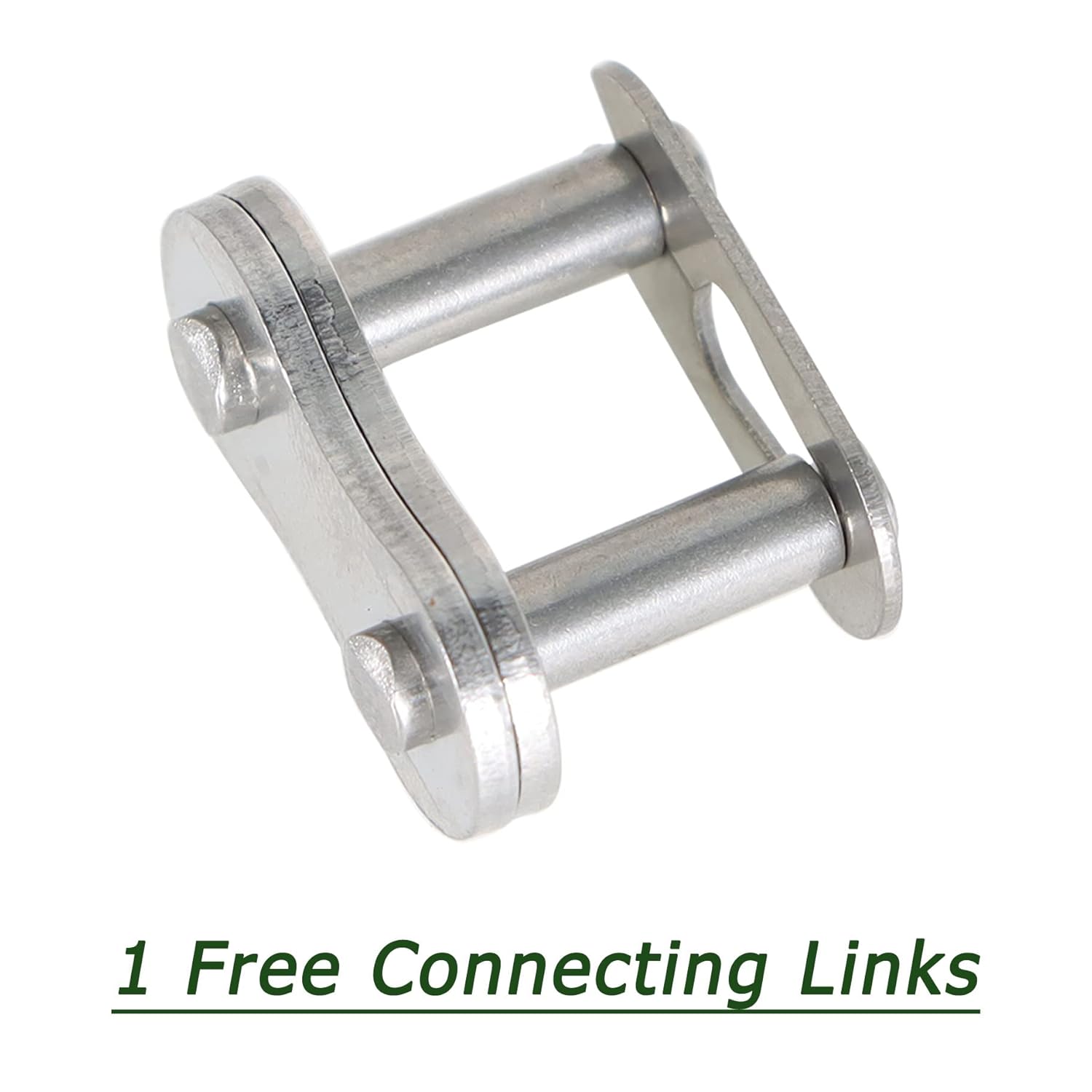

40SS 10 Feet Stainless Steel Roller Chain 240 Links + 1 Connecting LinksSpecification:ANSI Chain No.: 40Material: Stainless SteelPitch (P): 0.5 Inch (12.7 mm)Weight: 0.417 Lb/ft (0.62 kg/m)Breaking Load: 9.6 KN (2182 lbs)Pin Lenght (L max): 0.654 Inch (16.60 mm)Pin Lenght (Lc max): 0.701 Inch (17.80 mm)Pin Diameter (d2 max): 0.156 Inch (3.96 mm)Plate Thickness (T max): 0.059 Inch (1.50 mm)Roller Diameter (d1 max): 0.313 Inch (7.95 mm)Inner Plate Depth (h2 max): 0.472 Inch (12.0 mm)Width Between Inner Plates (b1 min): 0.310 Inch (7.85 mm)Features: Stainless steel chain with water, rust, corrosion ability, high toughness characteristics.Inclusivity: Can be applied to high and low temperature occasions, in humid and other harsh environments are available.Technical Support: Prestressed operation firmly fastens chain components, evenly distributes workload, accurately determines chain length, and prevents rapid elongation during initial running-in.Package Includes: 1 x 40SS Stainless Steel Roller Chain1 x Connecting Links
- Length: 10 Feet
- ANSI Chain No.: 40
- Processing Technology: Heat treatment ensures the toughness of all components, reduces wear and prolongs the service life of products
- Features: Stainless steel chain has excellent wear ability, corrosion resistance, no maintenance, long service life characteristics
- Application: Widely used in high force, abrasive ability requirements, and can not be frequently maintained
| Model | Does Not Apply |
|---|---|
| Pitch | 12.7 Millimeters |
| Brand Name | Timunr |
| Unit Count | 1.0 Count |
| Item Length | 10 Feet |
| Part Number | TIM-1363588-254128-UNR |
| Strand Type | Single |
| Manufacturer | Timunr |
| Load Capacity | 2182 lbf |
| Plate Thickness | 0.06 Inches |
| Roller Diameter | 0.31 Inches |
| Specification Met | Ansi |
