Capacitance Meters, ET511 DC Low Resistance Tester Portable Milliohm Meter Microresistance Tester for Resistance Measurement (10μΩ~20kΩ)

Specifications:Model: ET511Measuring Range: 10~20kBasic Accuracy: 0.1%RD+3words(minimum resolution 10)Max Testing Current: 100mADisplay Method: Direct -reading / PercentageTesting Speed: Slow: 8times/S; Fast: 15 times /SSorting Function: Trigger Method: Internal; Manual; External<;5VRange Method: Auto/ LockExternal Port: Standard: RS232, HANDLER; Option: RS485<;80%RH<;15VAMaterial: ABSItem Size: 23 * 12.2 * 8 cm / 9.05 * 4.8 * 3.15 inchItem Weight: 500g / 17.64ozPackage Size: 29.5 * 20.7 * 13.7 cm / 11.61 * 8.15 * 5.39 inchPackage Weight: 908g / 32.03oz

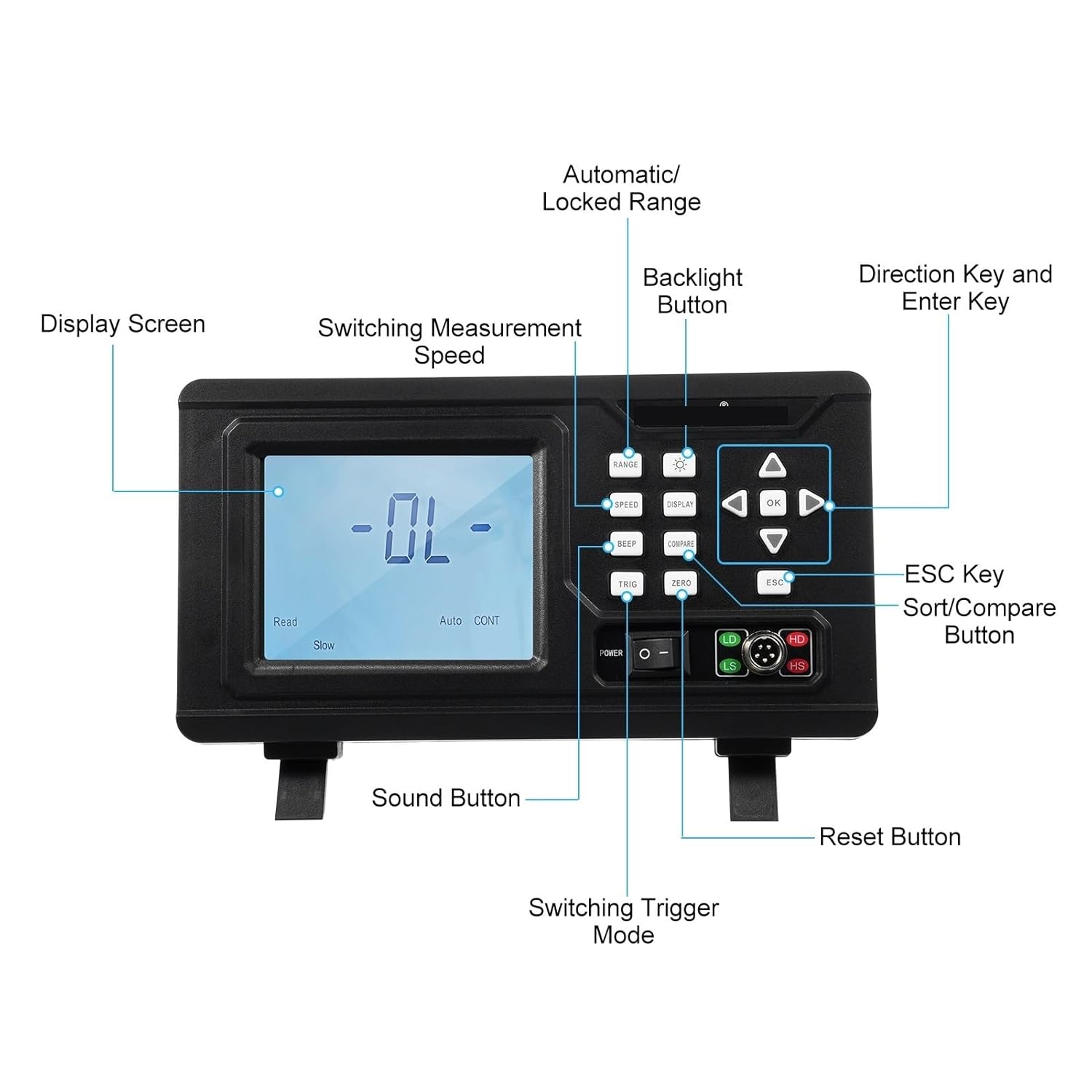

• LCD Display: Large LCD screen with backlit display, high-definition LCD display, Backlight allows for use in low light or dark environments. The backlight can be turned on or off, providing energy-saving options.
• Measurement Range And Accuracy: The DC low resistance tester features measurement resistance range from 10 to 20k, Resistance accuracy: 0.1%; Minimum resolution 10. High precision and accurate reading, which meets the needs of electricity and household maintenance.
• Testing Speed: There are two kinds of adjustable test speed, slow 8 times/s and fast 15 times/s. The measuring speed can be adjusted as required.
• Sorting and Comparison Function: The sorting and comparison function has two data display states, one is direct reading (direct display) and the other is percentage (percentage relative value display).
• Sorting Result Output Function: The product also has a sorting result output function. If the upper and lower limits/nominal values have been set, the sorting result can be output to the outside through the interface during measurement. The maximum percentage can show-99.99%-99.99%.
