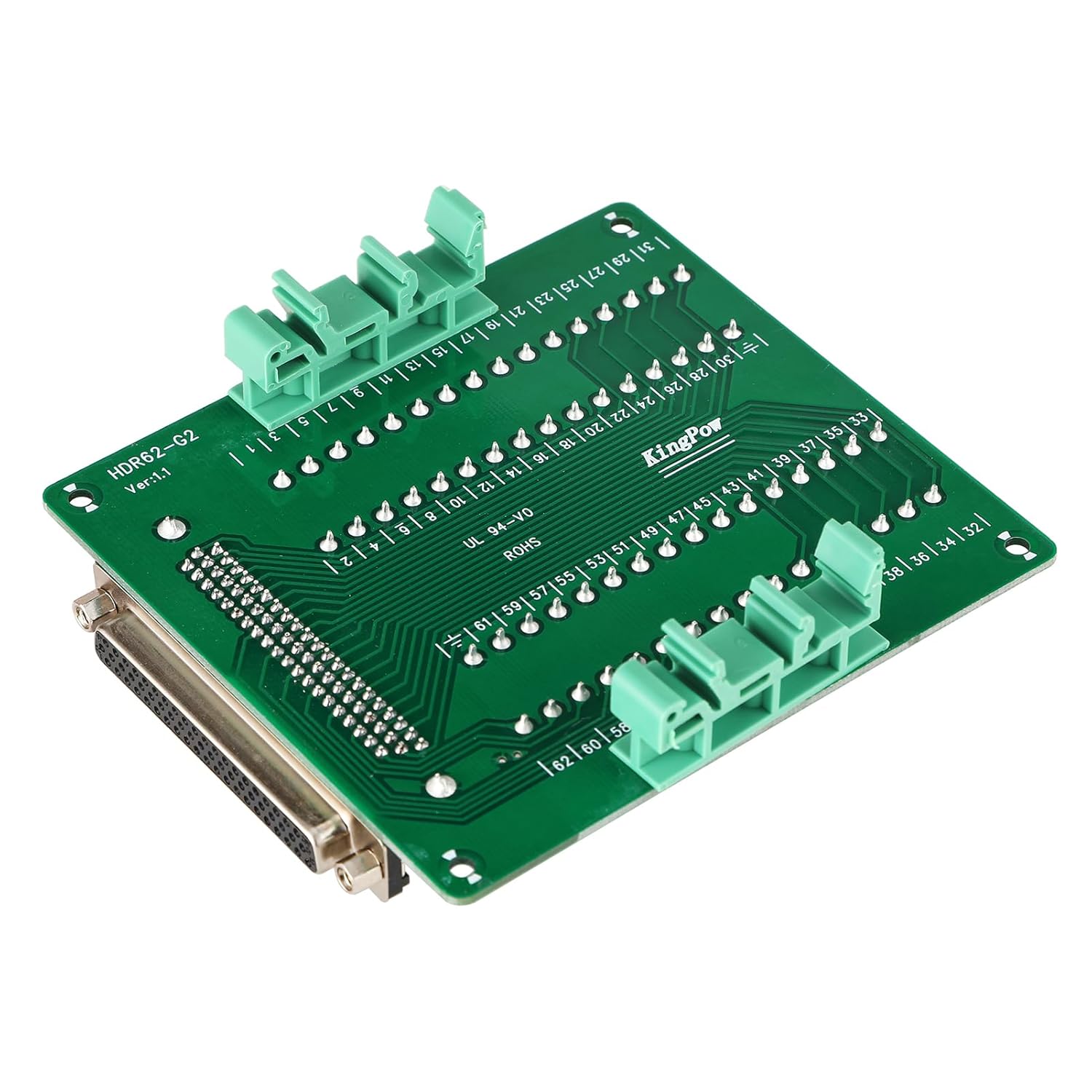

DB62 Solderless Connector, Female D-SUB Header to 62-pin Port Transfer Terminal Adapter Breakout Board with C45 PCB DIN Rail Mounting Bracket

These DB62 Female Solderless Connectors are used to terminate the connection type of a cable. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life. Terminal boards are commonly used in prototyping, testing, and troubleshooting scenarios where frequent changes or modifications to the wiring are required. Technical Specifications: Name: DB62 solderless module Plug type: Female Connector material: Pure copper nickel plated joints Contact Material: Gold-plated copper solid needle Insulator: PBT 30%GF Terminal block diameter: 0.14'' / 3.5mm Pitch: 0.2'' / 5.08mm Cable Specification: 0.15mm²~1.5mm²/26-16 AWG Strip length: 6-7mm Torque: 0.2Nm (1.7Lb-In.) Rated voltage: 24V Rated current: 1A DIN rail mountable: 15/28/35mm Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc. Size: 109.5 mm×100.0 mm×27.6 mm /4.31″×3.94″×1.08″ Package includes: 1 x DB62 Female Solderless Connectors 2 x C45 PCB DIN Rail Mounting Adapter Circuit Board Bracket

• DB62 terminal board is a device that provides a convenient way to connect wires or cables to a DB62 connector. It typically consists of a board with screw terminals, where you can easily attach and secure the individual wires. This eliminates the need for soldering and allows for easy installation and removal of connections.
• DURABLE: Gold-plated copper solid needle, fine solder joints, resistance to plug, and good contact to ensure high-quality, durability and a long life.

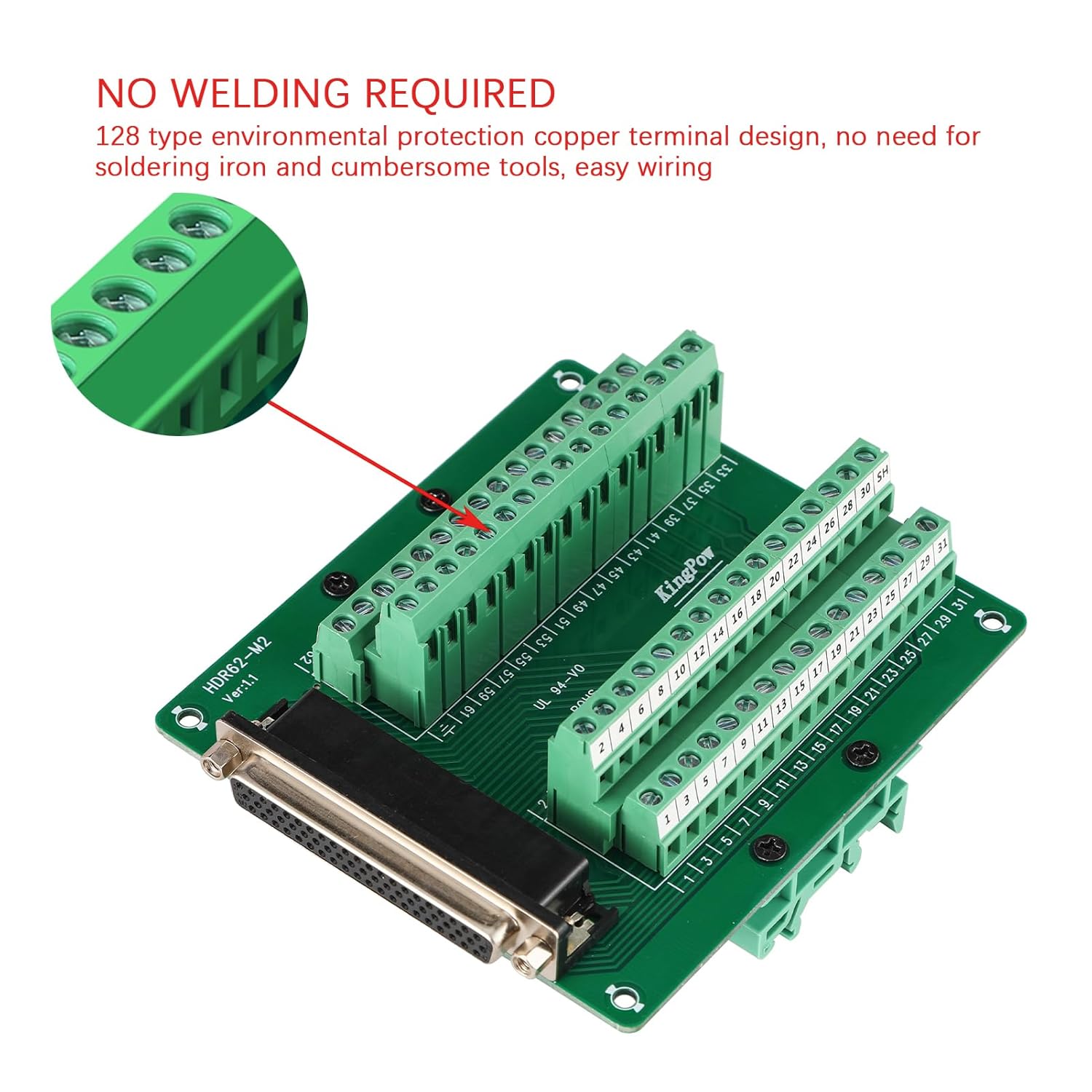

• SOLDERLESS: No welding required, 128 type environmental protection copper terminal design, no need for soldering iron and cumbersome tools, easy wiring.
• REDUCE ERRORS: All signal ports are clearly named and labeled on both sides of the board for quick wiring.
• APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
