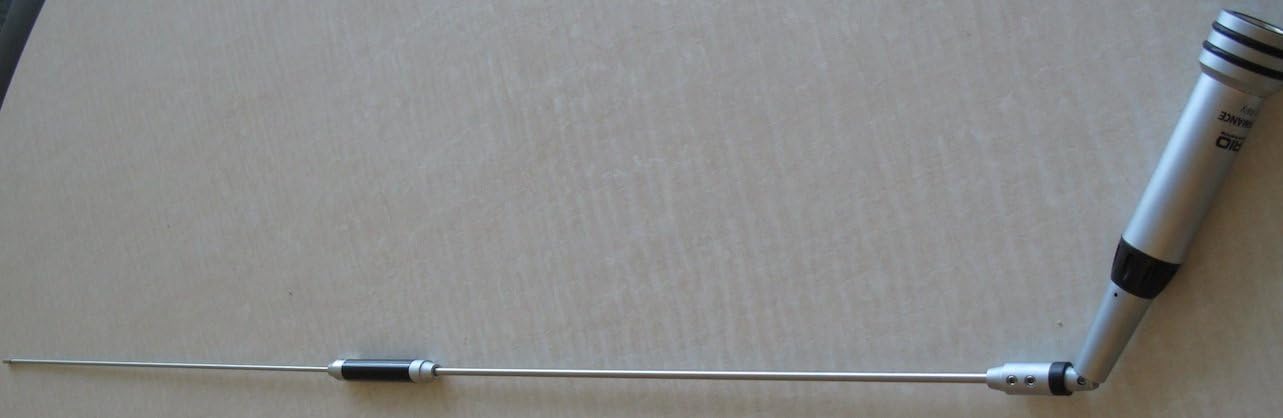

Sirio HP 2070H 2m/70cm V/UHF Dual Band Mobile Antenna

Sirio HP 2070H high gain VHF/UHF vehicular antenna working on 2m and 70 cm bands. The very best materials have been used to guarantee the maximum strength and the best performance. The whip, made of 17/7 PH stainless steel, has an inclination system that allows the 90o tilting without using keys or tools. Also a particular attention has been paid to the UHF-male connector with a gold plated center pin, "Teflon" insulator and silicone rubber gasket for a perfect waterproofing. Frequency: VHF 143-149 MHz, UHF 440-450 MHz. VHF 1/2 wavelength, UHF 2 x 5/8 wavelength Gain: VHF 0.7 dB, UHF 4.4 dB ref. to a λ /4 whip Max Power (CW) @ 30°C: VHF 150 Watts, UHF 100 Watts Conector: UHF-male (PL 259)

• Mobile antenna, Dual-band Omnidirectional VHF band Low-gain, UHF band High-gain Protection from static discharges DC-Ground 17/7 PH stainless steel cylindrical whip 90° tiltable whip and detachable for car-washes access Wide range of optional mounting bases available
• Type: VHF 1/2 wavelength, UHF 2 x 5/8 wavelength Colinear Frequency range @ SWR <=2: VHF 143-149 MHz, UHF 440-450 MHz, Impedance: 50 Ohms, Radiation (H-plane): 360° omnidirectional Polarization: linear vertical Gain: HP 2070 H: VHF 0.7 dB, UHF 4.4 dB ref. to a wave /4 whip Max Power (CW) @ 30°C: VHF 150 Watts, UHF 100 Watts Grounding protection: all metal parts are DC-grounded, the inner conductor is coupled capacitively Conector: UHF-male (PL 259)
• Materials: Stainless Steel 17/7 PH, Chromed Brass, Nylon Height (approx.): HP 2070 H: 1080 mm Weight (approx.): HP 2070 H: 330 gr
