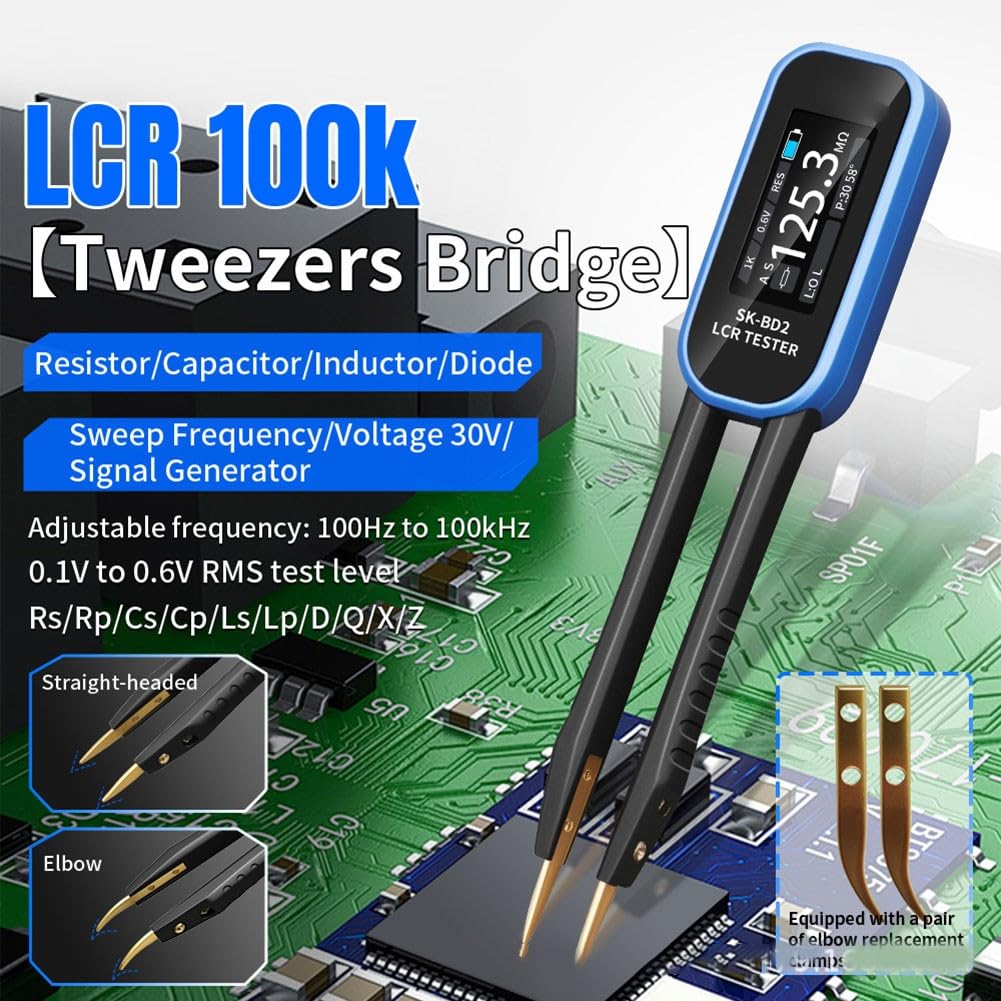

SK-BD2 Digital LCR Meter Tweezers-Type Impedance Analyzer with 1.47-inch Color Screen Type-C Charging for SMD Testing Auto Hold Function

Features:Multi-mode adjustment and signal function: Supports adjustable V/F frequency/level, built-in signal generator and multi-frequency automatic scanning.Practical measurement tool: Integrates multimeter voltage measurement function, with AUTO automatic recognition and HOLD data hold.Convenient battery life and interface: Uses Type-C lithium battery direct charging, supports automatic shutdown for long battery life.User-friendly interface design: Supports Chinese and English language switching, equipped with a 1.47-inch high-definition color screen that can rotate left and right.Clear information display: Provides main and secondary parameter display, intuitively presenting function status.Specifications:Part Name: SK-BD2 Mini Digital Bridge Smart-Clamp MeterMaterial: As shownColor: Black/BlueSize: As shown1. Product Model: SK-BD22. Capacitance Range: 1pF-20mF3. Inductance Range: 1μH-60H4. Resistance Range: 1Ω-10MΩ5. Diode: 0.6V6. Frequency Testing: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz7. Level Testing: 0.1V, 0.3V, 0.6V RMS8. Parameter Display: L, C, R, D, Q, for RS, Z, X, P9. Screen: 1.47-inch color screen10. Type-C chargin11. Power Supply: 300mAh lithium battery12. Automatic Measurement Identification: Supported13. Replaceable Clamp: Supported14. Automatic shutdown: Supported15. Data retention: Supported16. History: Connect to a computer to view and export resistance range, capacitance range, inductance range, and continuity rangePackage content: 1* Bridge Smart-Clamp Meter1 pair of straight tweezers1 pair of curved tweezers1* USB cable1* Bag

• [COMPLETE ELECTRONICS TESTER KIT] Package contains 1 Bridge Smart Clamp Meter, 1 straight tweezer set, 1 curved tweezer set, 1 USB cable and 1 storage bag. Tweezers-type LCR digital bridge tailored for ESR testing and component measurement.

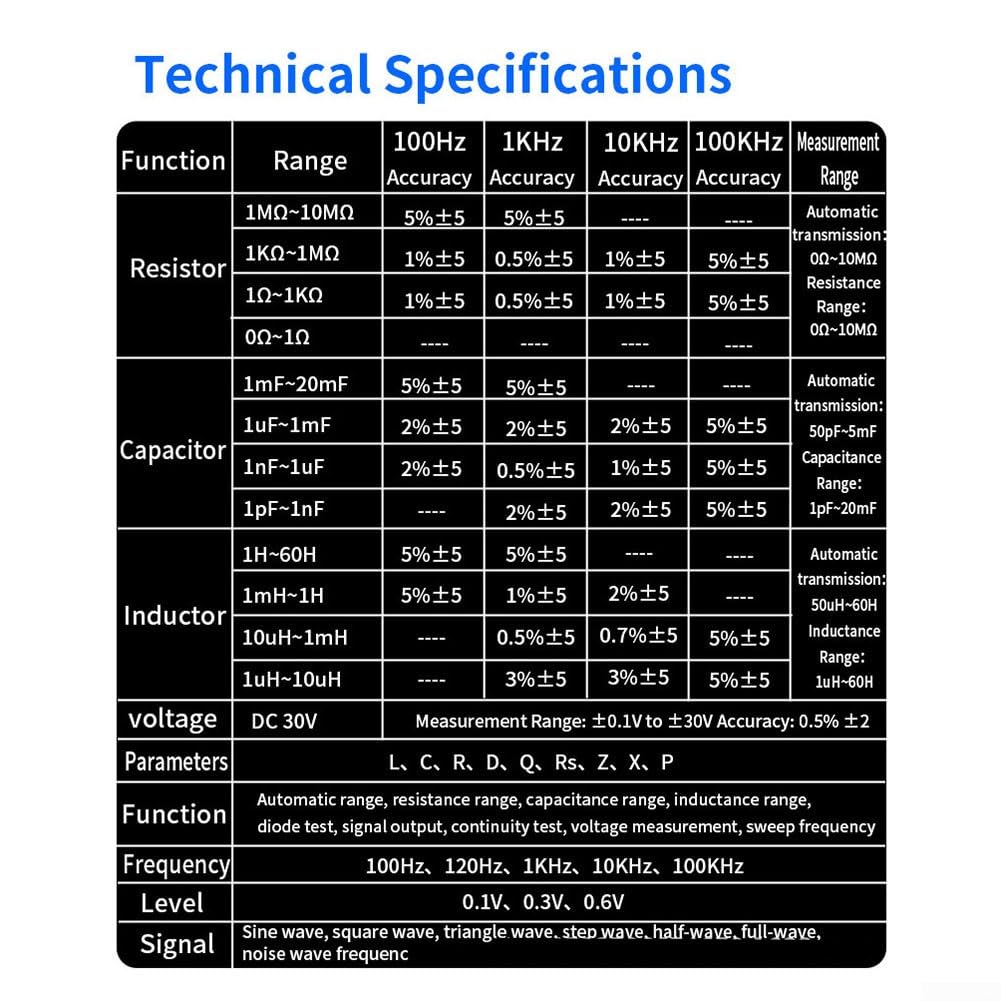

• [EXTENSIVE RANGE AND READOUT] Capacitance from 1pF to 20mF, inductance 1uH to 60H, resistance 1 Ohm to 10M Ohm with multi-parameter display (L, C, R, D, Q, forRS, Z, X, P) for detailed diagnostics.
• [ADVANCED SIGNAL FUNCTIONS] Built-in signal generator, adjustable frequency and level and multi-frequency automatic scanning speed up component characterization and ESR checks while AUTO mode simplifies routine tests.
• [ERGONOMIC DESIGN AND ACCESSIBILITY] Rotating 47 inch color screen, Chinese/English language switch, replaceable clamp support and precise tweezer tips make probing small parts comfortable and the UI easy to read.
• [RECHARGEABLE POWER AND DATA TOOLS] Type C rechargeable 300mAh battery with auto shutdown, data hold and history export capabilities via computer; suitable for electronics repair, R and D labs and hobbyists testing components.
